7 selectable of fluid pan-tilt drag positions + 0.
8 selectable positions of counterbalance.
Perfect for payloads to 4.5-37.5kg (9.9-82.5lbs).
Fluid drag system with smooth start and soft stop technology and balanced diagonal transition.

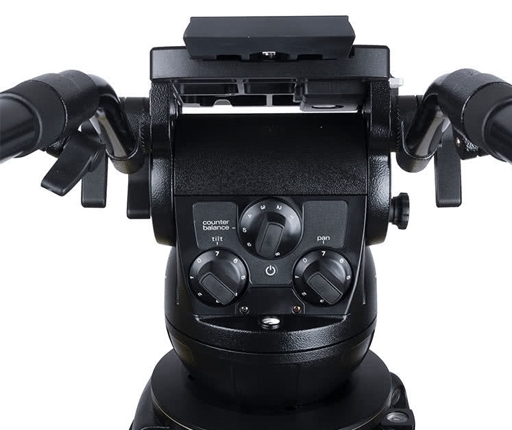

Controls “all in one location” design for fast easy and practical use.
Unique all illuminated bubble level, pan-tilt drag and counterbalance controls.
Precise floating pan-tilt calliper locks ensure bounce free on-off performance.
High precision ball bearing supported pan-tilt movement.

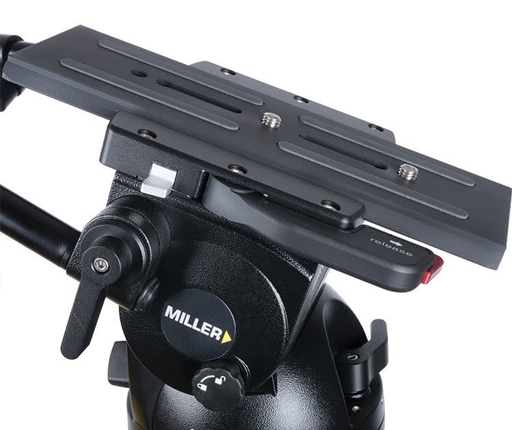

Side loading camera platform, 150mm travel with Arri type camera plate.
Front mount adaptor for camera assistant’s accessory box.
Mitchell base adaptable.
Robust construction for rugged outdoor shooting conditions.

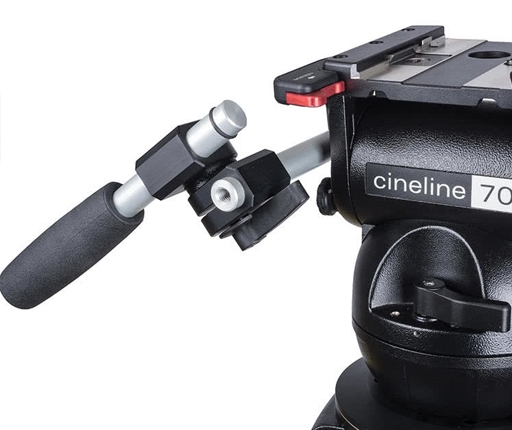

Dual HD telescopic pan handles.
Two side mounting points for viewfinders and accessories.
3 year warranty.

承重範圍 / Payload Range	4.5-37.5kg (9.9-82.5lbs)
重量 / Weight	5.8kg (12.7lbs)
動態平衡 / Counterbalance Positions	8 段 (15+0)
水平/垂直阻尼段數 / Pan Tilt Drag	7 段 + 0
水平阻尼固定 / Pan Tilt Locks	Positive lock calliper brake system
垂直頃斜範圍 / Tilt Range	+ 90°/ -75°
水平旋轉範圍 / Pan Range	360°
攝影機底版 / Camera Platform	Side loading quick release camera plate (Arri)
底版調整範圍 / Sliding Range	150mm (5.9″)
雲台碗座 / Mounting Base	Ø150mm (5.9″) ball levelling with 3 x M5 holes for flat base mounting
照明功能 / Illuminated Controls	Bubble level, pan-tilt drag & counter balance controls
手柄（Pan 桿）/ Pan Handle	2 x HD Telescopic 430-630mm (16.9-24.8″)
使用溫度 / Temperature Range	-40° to +65°C (-40° to +149°F)
