CAT: 1093

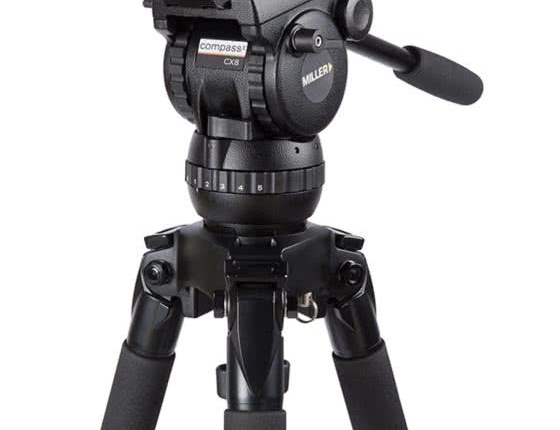

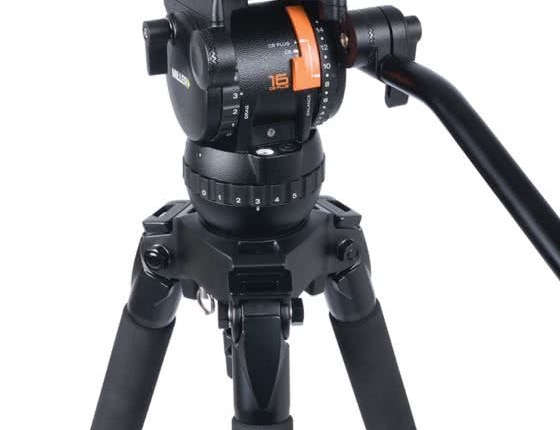

CX8 Fluid Head
- Compact, uncompromised performance
- Perfect for payloads to 0-12kg (26.4bs).

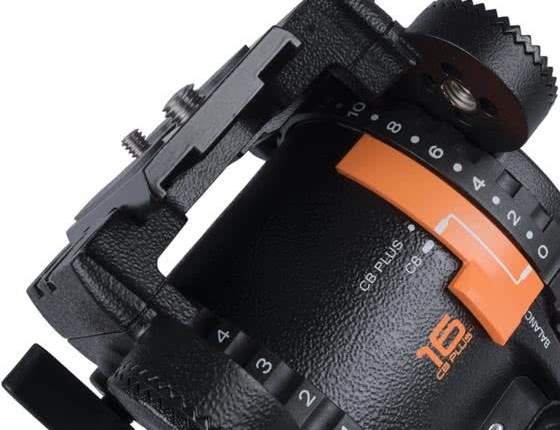

- 15+0 CB Plus selectable counterbalance positions.
- Ergonomically located CB Plus switch.
- 5+0 selectable positions of fluid pan and tilt drag.
- Positive selection radial ring controls.
- Illuminated bubble level.
- Precise floating pan-tilt calliper locks ensure bounce free on-off performance.

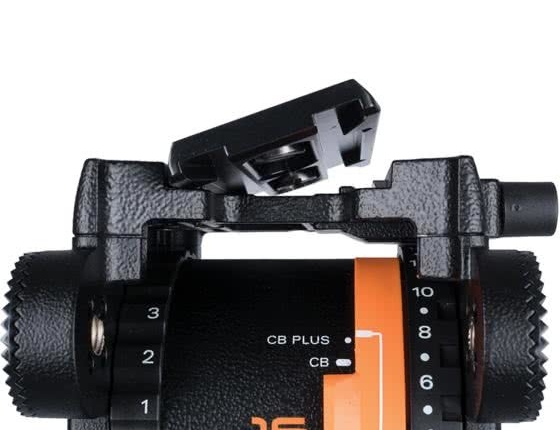

- Side loading, 60mm balance travel camera plate with 1/4” and 3/8” screws.
- Robust construction for rugged outdoor shooting conditions.

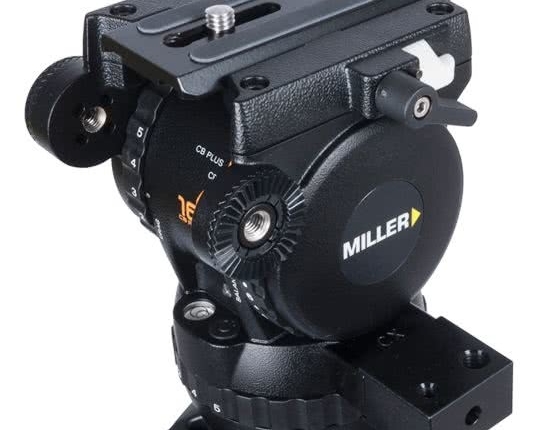

- Side mounting point for viewfinders and accessories.
- Optional second pan handle mount.
- 3 year warranty.
Specification – CX8 Fluid Head
| Payload Range | 0-12.0kg (0-26.4lbs) |
| Weight | 2.5kg (5.5lbs) |
| Counterbalance Positions | 16 selectable positions (15+0) |
| Pan Tilt Drag | 5 Selectable fluid drag positions + 0 |
| Pan Tilt Locks | Positive lock calliper brake system |
| Tilt Range | + 90°/ -75° |
| Pan Range | 360° |
| Camera Platform | Quick release, side load camera plate |
| Sliding Range | 60mm (2.4″) |
| Mounting Base | Ø75mm (2.9”) ball levelling |
| Height Above Bowl | 167mm (6.6″) |
| Illuminated Controls | Bubble level |
| Pan Handle | Fixed length 390mm (15.4″) |
| Temperature Range | -40° to +65°C (-40° to +149°F) |
