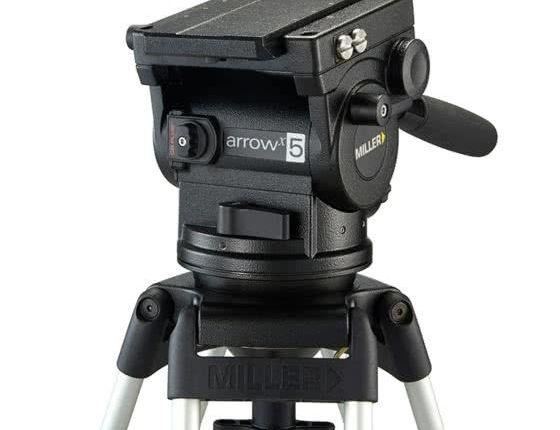

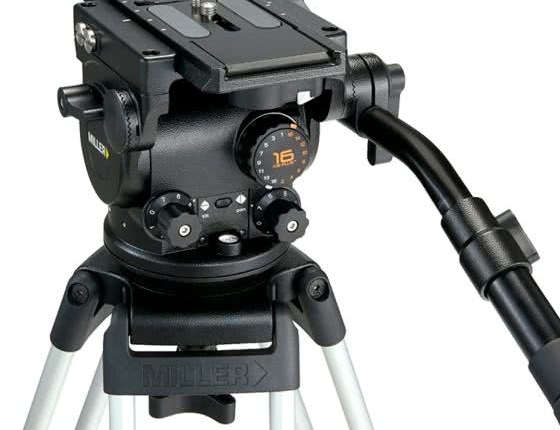

Compact, lightweight and versatile.
7 selectable positions of fluid pan and tilt drag + 0.

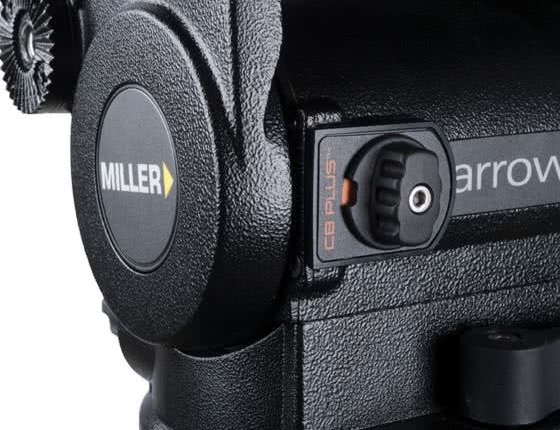

16 position CB Plus™ counterbalance system.
Wide payload range 2-21kg (4.4-46.2lbs).
Fluid drag system with smooth start and soft stop technology & balanced diagonal transitions.
Controls “all in one location” design for fast, easy and practical use.

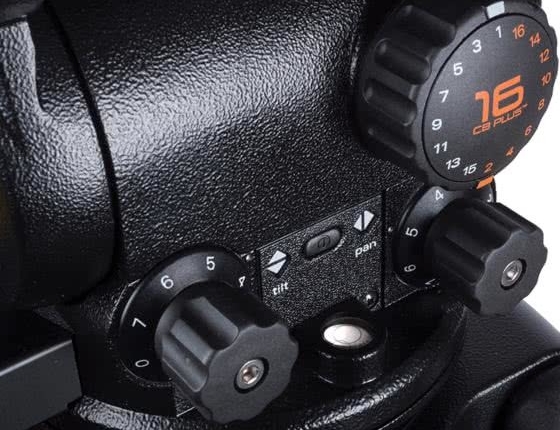

Illuminated bubble level and pan-tilt drag controls.
Precise floating pan-tilt calliper locks ensure bounce free on-off performance.

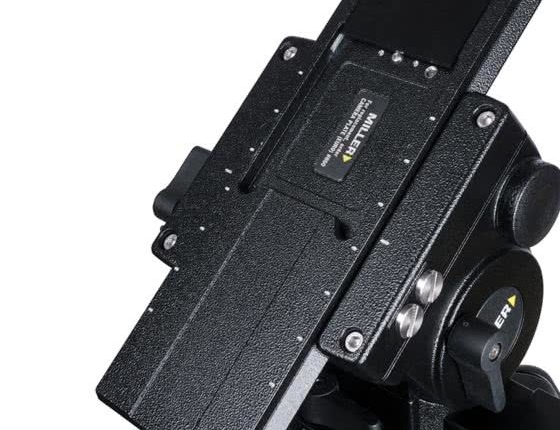

Quick release, 120mm sliding camera platform with camera plate (euro).
Removable ball level stud allows for flat base mounting with 3/8” screw thread.
Mitchell base adaptable.
Robust construction for rugged outdoor shooting conditions.

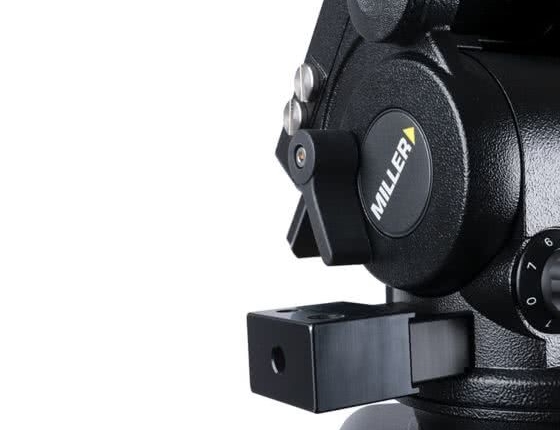

Optional second pan handle mount.

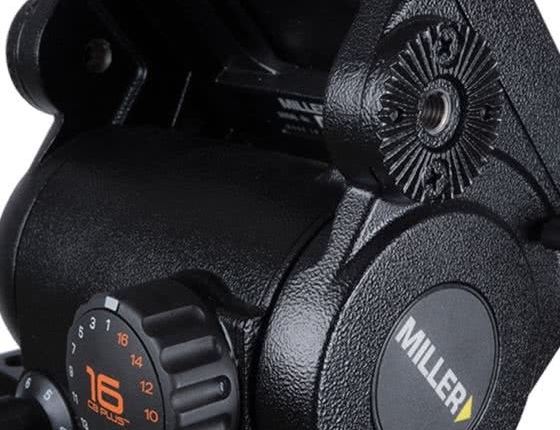

Side mounting point for viewfinders and accessories.
3 year warranty.

承重範圍 / Payload Range	2.0-21.0kg (4.4-46.2lbs)
重量 / Weight	3.4kg (7.4lbs)
動態平衡 / Counterbalance Positions	16 段 (15+0)
水平/垂直阻尼段數 / Pan Tilt Drag	7 段 + 0
水平阻尼固定 / Pan Tilt Locks	Positive lock calliper brake system
垂直頃斜範圍 / Tilt Range	+ 90°/ -75°
水平旋轉範圍 / Pan Range	360°
攝影機底版 / Camera Platform	Quick release, side load camera plate
底版調整範圍 / Sliding Range	120mm (4.7″)
雲台碗座 / Mounting Base	Ø100mm (3.9″) ball levelling with 3 x M5 holes for flat base mounting
碗座以上高度 / Height Above Bowl	162mm (6.4″)
照明功能 / Illuminated Controls	Bubble level, pan-tilt drag controls
手柄（Pan 桿） / Pan Handle	Telescopic 390-590mm (15.4-23.2″)
使用溫度 / Temperature Range	-40° to +65°C (-40° to +149°F)
