Designed for AR/VR systems.
Pan resolution 1.6 million counts per rev.
Tilt resolution 1.0 million counts per rev.

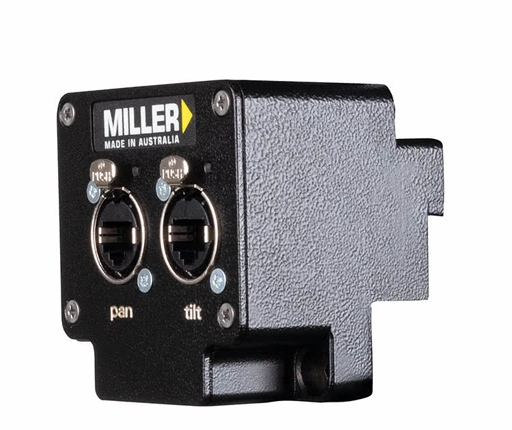

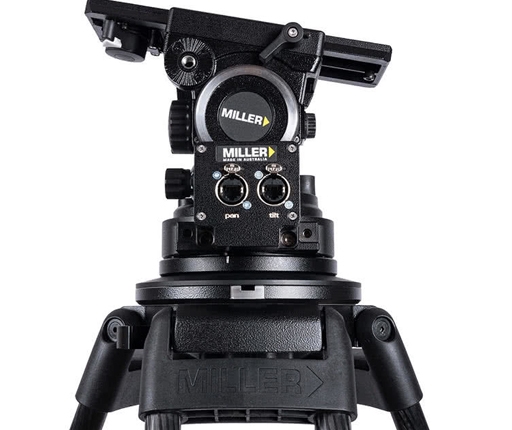

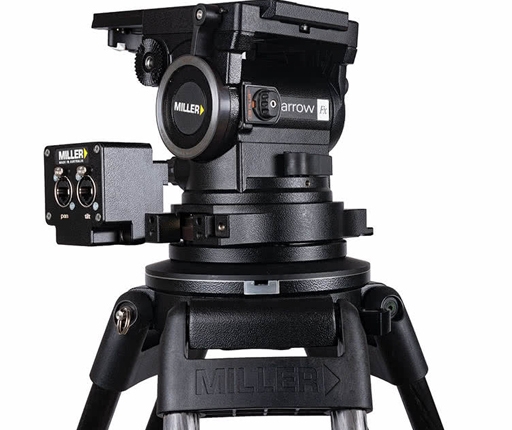

Removeable encoder housing.
Wide payload range 2-21kg (4.4-46.2lbs).
7 selectable drag positions (pan and tilt) + 0.
16 position CB PlusTM counterbalance system.
Quick release, 120mm sliding camera platform with standard camera plate (euro).

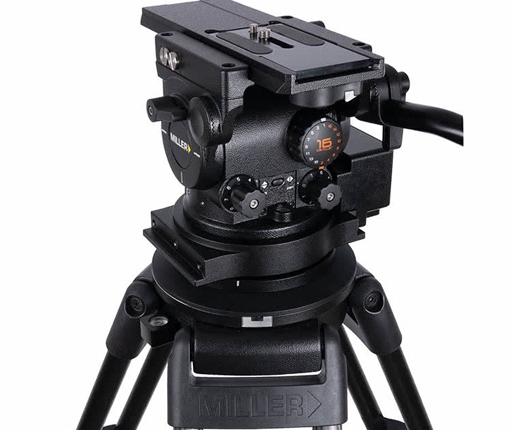

Modular base allows for D100 bowl (incl.) or D150 bowl (opt.) Mitchell base (Opt.) (pictured).
Optional second pan handle mount.
Side mounting points for viewfinders and accessories.

承重範圍 / Payload Range	2-21kg (4.4-46.2lbs)
重量 / Weight	5.1kg (11.2lbs)
動態平衡 / Counterbalance Positions	16 段 (15+0)
水平/垂直阻尼段數 / Pan Tilt Drag	5 段 + 0
水平阻尼固定 / Pan Tilt Locks	Positive lock calliper brake system
垂直頃斜範圍 / Tilt Range	+ 90°/ -75°
水平旋轉範圍 / Pan Range	360°
攝影機底版 / Camera Platform	Quick release camera plate
底版調整範圍 / Sliding Range	120mm (4.7″)
雲台碗座 / Mounting Base	Ø100mm (3.9″) ball levelling (std.) Ø150mm (5.9″) ball levelling (opt.) Mitchell Base (opt.)
照明功能 / Illuminated Controls	Bubble level, pan-tilt drag controls
手柄（Pan 桿）/ Pan Handle	Telescopic 390-590mm (15.4-23.2″)
使用溫度 / Temperature Range	-40° to +65°C (-40° to +149°F)
